T-REX TECHNOLOGY SYSTEMS
The T-Rex digesters are highly efficient large capacity systems with high gas production designed for Farms, Children's homes, Universities & institutions, Schools, Hotels and anywhere with a high-energy demand.
The systems are also designed as waste management devices for market places, municipal waste management etc.
T-Rex systems are modular making the plant easily scalable to meet the client requirements. The system is of longitudinal "True Cross Flow" methodology, or you could say a continuous batch-flow.
This meaning anything fed in the inlet end will be forced to flow the full length of the system (minimum retention period of 25-40 days) whereby getting fully digested, and having given off all the biogas potential by the time it overflows the exit as a rich organic fertilizer and pest repellent.
The T-Rex biogas plants runs on any bio-degradable material as feedstock and therefore does not limit the user to use of only cow dung.
All our plants are designed with the operator in mind – simple to understand and operate. Feed one end, a turn or two of the agitation wheel, and the system does the rest. Gas is piped directly to the point of use, and "Ready To Use" bio-fertiliser automatically overflows from the opposite end into a collection tank.
Large Capacity Biogas Systems brochure
Flexi Technology was born out of over 20 years of research and development and in consideration of all aspects and inefficiencies associated with conventional constructed biogas technologies.
Overview
The T-Rex digesters are highly efficient large capacity systems with high gas production designed for Farms, Children's homes, Universities & institutions, Schools, Hotels and anywhere with a high-energy demand.
The systems are also designed as waste management devices for market places, municipal waste management etc.
View Projects
Key Attributes and Features
Key Features
- ✓ Modular design for easy scalability
- ✓ Longitudinal "True Cross Flow" methodology
- ✓ Minimum retention period of 25-40 days
- ✓ Runs on any bio-degradable material
- ✓ Simple operation and maintenance
Key Attributes
- ✓ Prefabricated for quick installation
- ✓ Multi-chamber cross-flow fermentation
- ✓ Scalable, plug & play design
- ✓ Produces rich organic fertiliser
- ✓ Complete waste processing system
Read more about the use and benefits of Bio-fertiliser here.
System Specifications
T-REX SIZING, FEED RATE AND COST
| MODEL | CAPACITY M3 | LENGTH | WIDTH | HEIGHT | MODULES | DAY INSTITUTION/ONE MEAL PER DAY | BOARDING INSTITUTION/THREE MEALS PER DAY | DAILY FEED RATE IN KILOS (GREEN WASTE + WATER) | COST (KENYAN SHILLINGS) |
|---|---|---|---|---|---|---|---|---|---|
| T30 | 30M3 | 9 | 2.5 | 1.5 | Single Module | 150 | 75 | 240 | 765,000 |
| T50 | 50M3 | 15 | 2.5 | 2.5 | Single Module | 250 | 125 | 400 | 1,200,000 |
| M100 | 100M3 | 21 | 3.6 | 2 | Single Module | 500 | 250 | 800 | 1,600,000 |
| M200 | 200M3 | 21 | 7.2 | 2 | Twin Modules of 100m3 each | 1000 | 500 | 1600 | 3,200,000 |
please note:
In a boarding institution (or a facility where people are served 3 meals per day per person), 1m3 of biogas will cook for approximately 5 people.
In a day institution (or a facility where people are served 1 meal per day per person), 1m3 of biogas will cook approximately 10 people.
The systems are modular and scalable to meet the energy demand.
How It Works

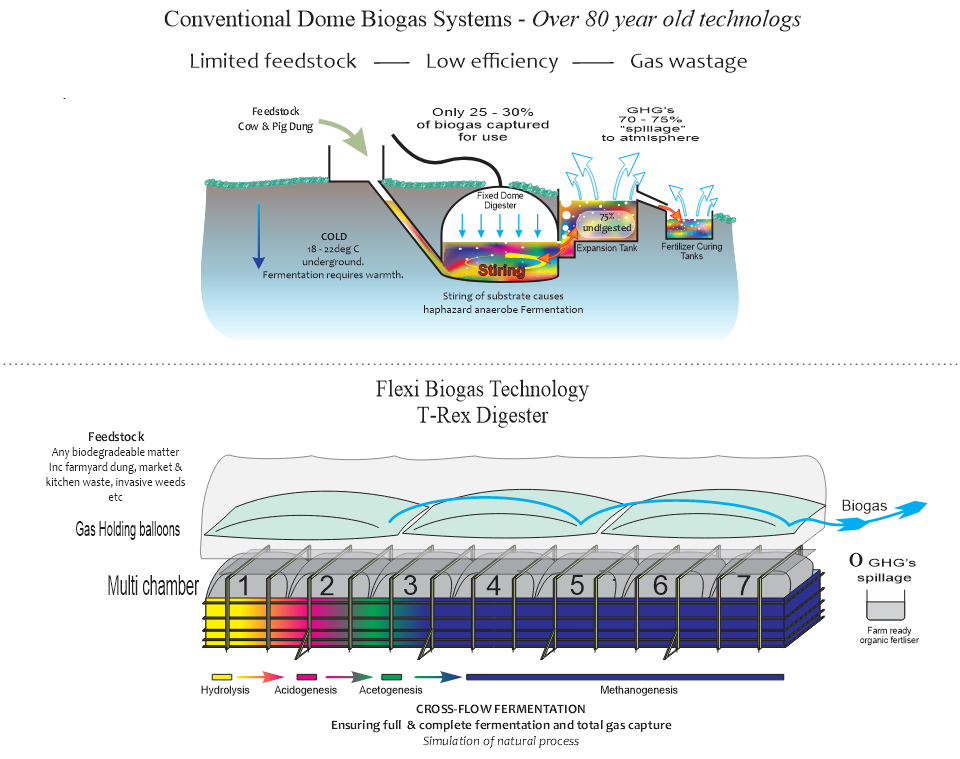

Illustration: T-REX Digester vs Conventional Dome Biogas System

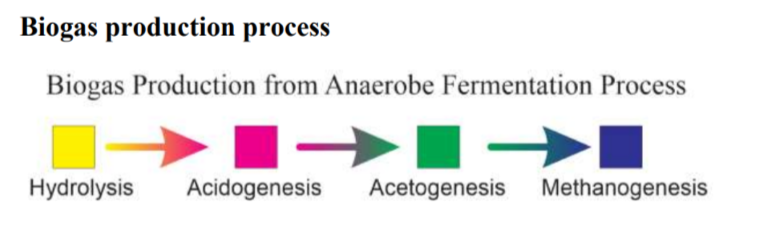

Biogas Production Process: Hydrolysis, Acidogenesis, Acetogenesis, Methanogenesis

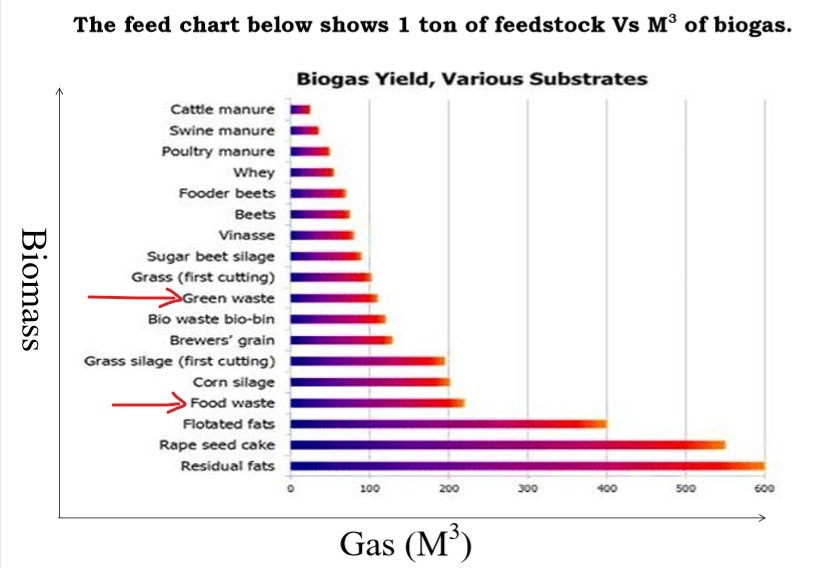

Feedstock vs Biogas Production Chart
T-REX Technology in Action
Watch our systems in real-world operation and learn more about T-REX technology through these featured videos.
Water Hyacinth: A Renewable Energy Source
Overview and demonstration of the T-REX system in action.
Bio Gas Plant at Ngong Town Market
Insights into installation and operation of T-REX digesters.
Angels Center for Abandoned Children
Learn about the modular and scalable features of T-REX.
Bio Gas Plant Established in Kisumu
Case studies and testimonials from T-REX users.
